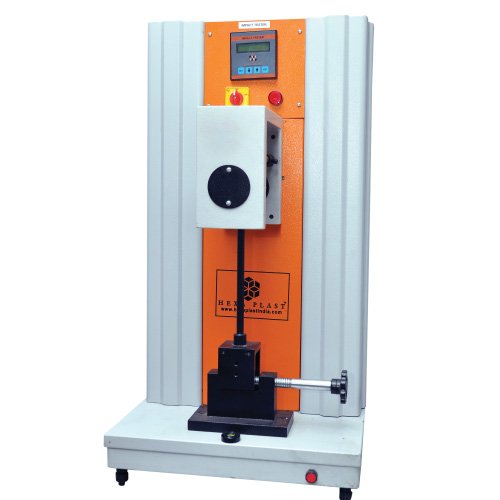

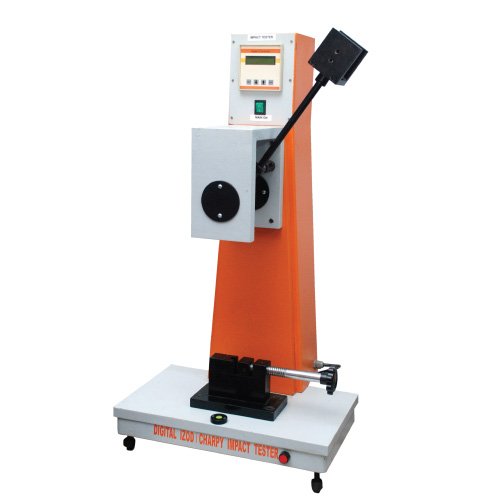

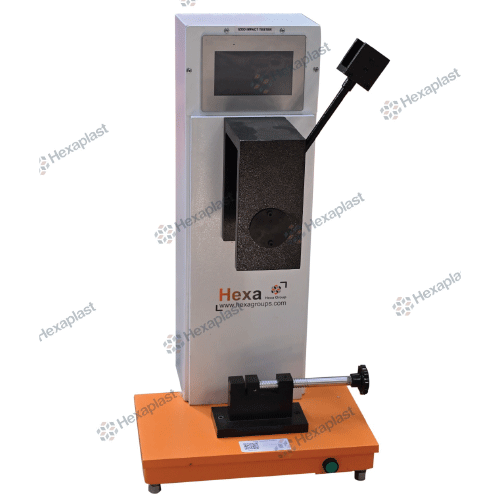

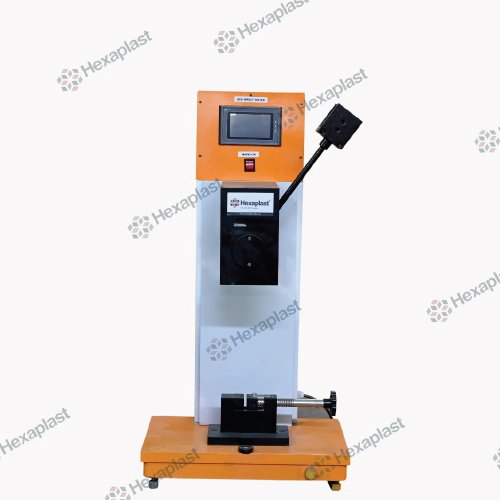

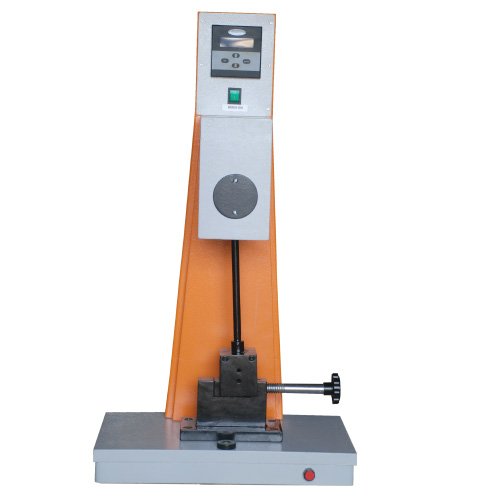

SPECIFICATION
- Impact Energy :0-25 Joules
- Release angle of pendulum: 150°
- Range of four scales: 0-2 Joules, 0-4 Joules, 0-7.5 Joules, 0-15 Joules, 0-25 Joules.
- Minimum resolution on scales : 0-2, 0-4 & 0-7.5 Joules-0.05 Joules, 0.15 Joules-0.1&0- 25 Joules-0.33respectively.
- Maximum permissible loss by Fiction: 0.5% of the scale referred.
- Hammers: 2 nos. of hard chrome Plated hammers of one each for Izod Tests for lowest scale would be supplied. Incremental plates would be supplied which could be attached to these hammers to convert them in to hammers for 2nd, 3rd, 4th& 5th scale.
- Vise: Hard chrome plated for Izod
- Paint: Powder Coated
- Power: 230V AC, 1 Phase, 50 Hz
Application:
Impact is a very important phenomenon in governing the life of a structure and also used to study the toughness of the material. A material’s toughness is a factor of its ability to absorb energy during plastic deformation.
Standard – ASTM D 6110, ISO 179-2
