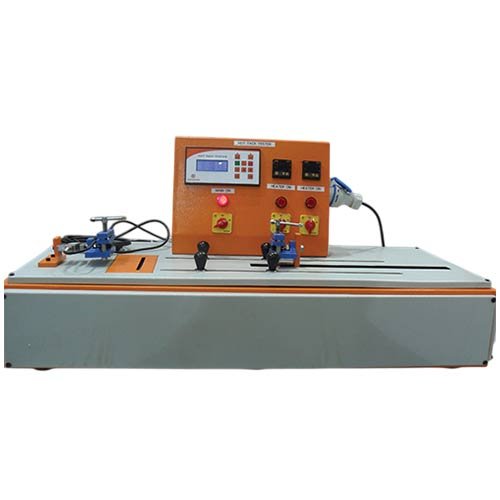

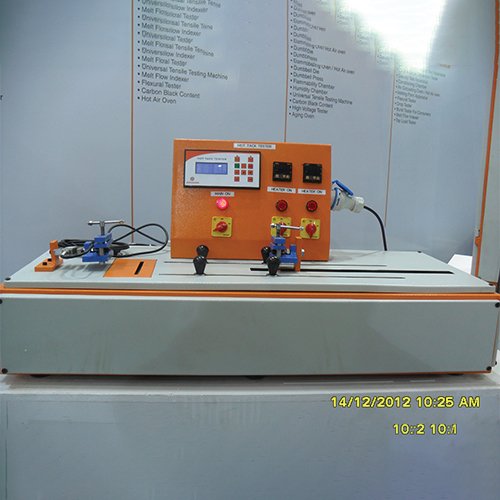

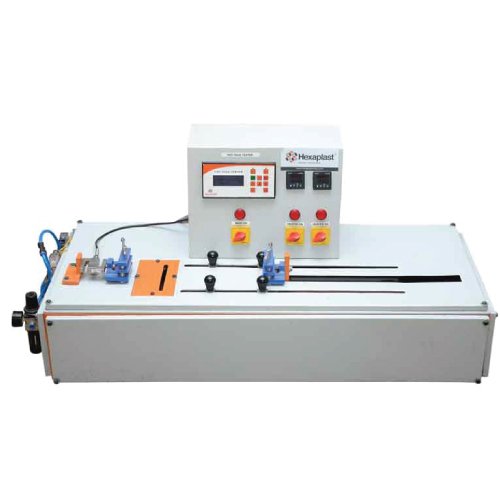

Hot Tack
Hexa Plast is the final destination of your search for the Hot Tack tester. Our machine is made with utmost care. Our Hot Tack tester is used for measuring the heat seal performance of the plastic films, laminated films, and various packaging products. The machine is also capable of testing the strength of the laminated films, adhesive tapes, composite films and such kind of flexible products.
Hexaplast make Hot Tack Tester measures the strength of heat seals formed between thermoplastic surfaces of flexible webs, immediately after the seal has been made and before it cools to room temperature.
Hot tack strength testing of packaging films
Quality evaluation of LDPE, LLDPE, HDPE, PP, CPP, BOPP, PET, and multilayer films
Seal strength analysis for flexible packaging
- Temperature Range: Ambient to 300°C
- Load Cell Capacity: 50 N / 100 N
- Temperature Accuracy: ±0.5°C
- Power Supply : 230V AC, 50Hz
- Sealing Pressure: 0.1–0.7 MPa (adjustable)
- Standards: Conforms to ASTM F1921, ASTM F2029, IS2508
- Sealing Time: 0.01–10 sec
- Jaw Size: 150 mm (width) (customizable)
- Tack Test Time: 0.01–2 sec
- Display: Digital / Touch Screen (Optional)
- Precision temperature-controlled sealing jaws
- Digital control of sealing time & pressure
- High-accuracy force measuring system
- Pneumatic or motorized sealing system
- Real-time display of hot tack force
- Stainless steel structure
- Rapid cooling mechanism (Optional)
- Automatic clamp opening and closing (Optional)
