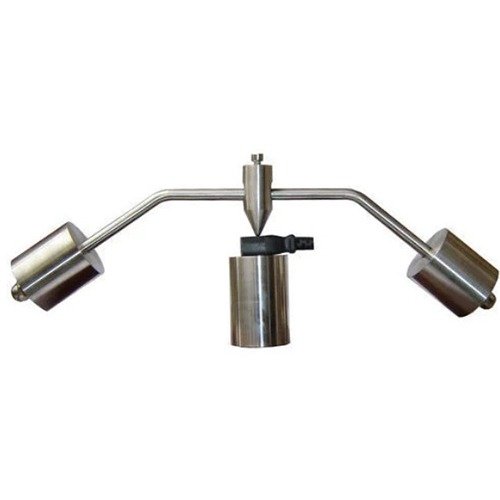

Ball Point Impact Tester
HEXA PLAST Ball Pressure Test is used to determine the heat resistance of electrical and plastic materials, especially
those used in electrical accessories, switchgear, and components. A steel ball of specified diameter is pressed against
the surface of the test specimen under a defined load and temperature for a specific time. After the test, the impression
depth is measured to assess the thermal stability and deformation characteristics of the material.
This test ensures that materials maintain their mechanical integrity and dimensional stability when exposed to high
temperatures during service conditions
- Electrical components
- Plastic enclosures and switchgear
- Insulating parts
- Test Method: IEC 60695-10-2 / IS 2824 / ASTM D1525
- Test Duration: 60 ± 2 minutes (adjustable)
- Steel Ball Diameter: 5 mm ± 0.05 mm
- Power Supply: 230V AC, 50Hz, Single Phase(for Hot Air Oven)
- Applied Load: 20 N ± 0.2 N
- Construction: Stainless steel inner chamber with insulated body
- Test Temperature Range: Ambient to 200°C
- Dimensions: Approx. 300 × 300 × 400 mm (W × D × H)
- Temperature Accuracy: ±1°C
- Weight: Approx. 15 kg
- Precision temperature-controlled chamber for uniform heating
- Stainless steel test platform for accurate specimen placement
- High-quality hardened steel ball (5 mm diameter) as per standard
- Automatic digital temperature indicator and controller
- Timer control for test duration
- Corrosion-resistant body with powder-coated finish
- Easy specimen loading and unloading system
- User-friendly design ensuring easy operation and sample placement.
