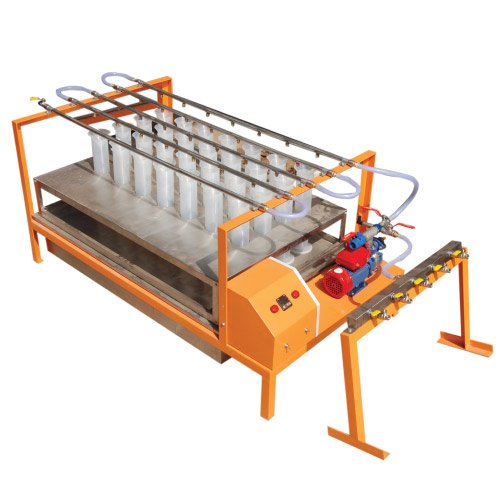

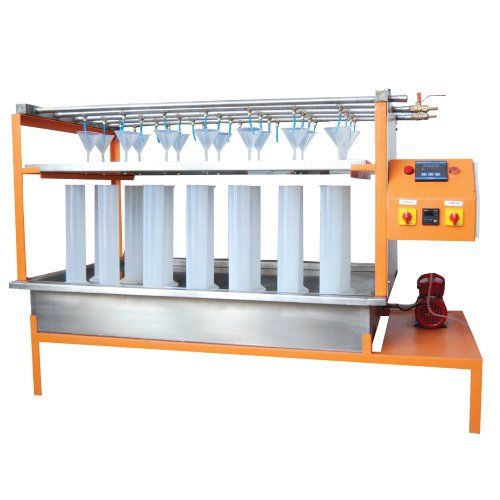

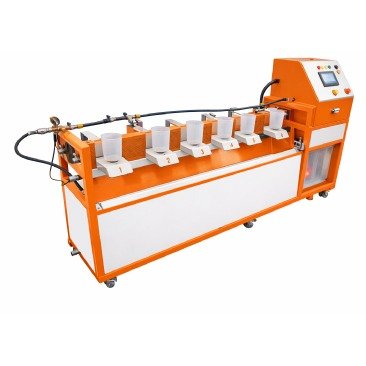

Emitting Flow Rate Checking Machine
An emitter flow rate testing machine, often called an Emission Flow Variation Test Apparatus, is a specialized laboratory instrument used to evaluate the hydraulic performance and uniformity of drip irrigation emitters. It measures how much water the emitter discharges over a specific time under controlled pressure to identify defects, clogging, or manufacturing inconsistencies.
This Flow rate machine helps to decide the quality of product and usefulness of the emitter to the farmer. The Flow rate can be easily tested within laboratory.
Test Standard: ISO 9260, ISO 9261, IS 13487, IS 13488
The machine is equipped with an Automedica module.
- Moulded Drippers (Emitters)
- Inline Drippers(Emitters)
- Flate Drip Lines
- Round Dripper
Any other similar products which can be connected to this equipment can be evaluated.
MS Metal Frame and Structure Powder Coated
Sample Testing Connection: Standard to attach Pipe
Water Collection Tray: Stainless Steel to Collect Water and Hold Measuring Cylinder
Pump: 0.5 HP / 230 V / 50 Hz
Measuring Cylinders with Funnel: 30 Nos (Made of Polypropylene) (Glass optional)
Timer Range: 999.9 Minutes
Pressure Gauge: Attached Analog / Digital available on Demand
Pressure Control: Manual (Auto system on Demand)
Power: 230 V AC / 50 Hz
Electrical Motor with Pump – Standard Make like ABB, Crompton,
25 Station – 5 each in one line for testing
Digital Timer – with LED Display and Buzzer
Pneumatically / Manual Funnel stand Movement for testing
Pressure Gauge Analog (Digital Option available)
