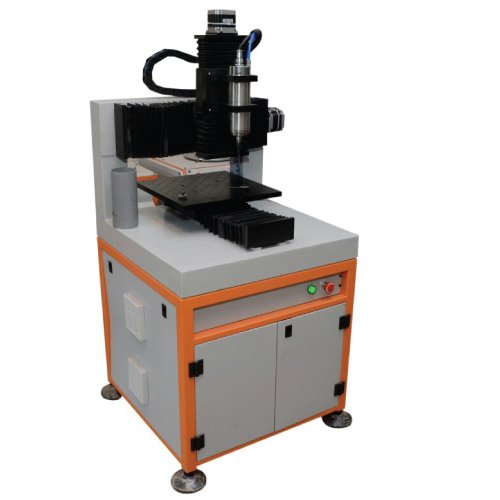

Specification:

• Travel X 300mm ( Belt Driven )
• Travel Y 300mm ( Belt Driven )
• Travel Z 100mm ( Distance/Thickness ) Max Distance Between Cutting Tool & Base Plate
• Resolution – 0.2mm
• Spindle 6000rpm to 12000 rpm
• Computer Configuration P5 with 2GB Ram.
• Power 230V, 1Phase, 50Hz.
• Power Consumption 4kv.
• Safety guard operated through limit switch.
• All drawings & sample size will be made in same
• Machine up to 60 mm thickness of Pipe

Safety Feature :

• PC/Acrylic made transparent cage to provide with Limit Switch For Do
•  Open With Alarm System.
• Thickness of cage sheet : 12mm

NOT IN OUR SCOPE

• Stabilizer / CVT 5kvA.
• Coral Draw Compatible Software

Application:

This machine used to remove material varying direction on one or several axes, cutter head speed, and pressure. Milling covers a wide variety of different operations and machines, on scales from small individual parts to large, heavy-duty gang milling operations. It is one of the most commonly used processes for machining custom parts to precise tolerances.
