Technical Specification:
- Load Capacity: 12 Ton
- Maximum distance between grips: 700 mm.
- Speed: Variable with AC frequency drive.
- Microprocessor based load indicator: Accuracy of +/- 0.05% of load indicated
- Newton or Kg. can be selected.
- Load cell I/P – one
- Extension meter: Least count of 1 mm through proximity/encoder switch.
- Over load excess elongation protection provided

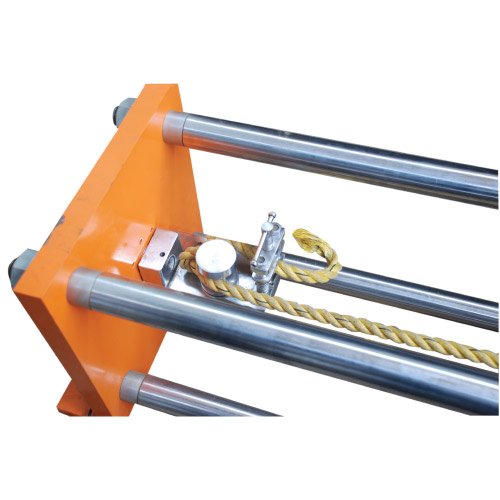

- One pair of grips provided to hold the samples up to 10 mm thickness.
- Floor Standing Model
- Paint : Powder Coating
- Power: 3 Phase, 415 V Ac, 50 Hz.
Our Computerized Machine software facility:
- RS 232 interface with WINDOW based software to conduct test and keep record of data with graph for the test and calculated results of Yield Load, Yield Extension, Break Load, Break Extension, and Modulus of Elasticity.
- On line update facility.
- Color combination will be changeable.
- Line, bar chart, Doted line, etc facility in graph.
- Graph Grids color Combination Facility.
- Graph Zooming Facility.
- Individual Posen Zooming Facility.
- Individual graph Comparison facility.
- Graph Overlapping Facility for analysis Material Property.
- Within Second we get the Result in K.G./cm2 And Nt.\ mm2.
- Auto Scaling and fix scaling Facility.
- Comport Manual Selectable.
- Company logo inserting facility.
- USB Driver Facility for Safety Features.
- Two way Communication Facility.
- We will generate the report with your company logo.
