Specification:
Suitable For Only HDPE Pipe : As Per IS : 4984
- Material of construction: Outer body M.S / Upper plate of chamber made of S.S. /Copper Barrel /Uniform electric Heating.
- Controller : Microprocessor L.C.D. display showing process Temperature, PID Controller with range up to 400 oC, resolution of 0.1o C &accuracy of deg C Delta T in 0.000 fraction of Deg C .
- Interfacing with computer to give results in graphical form with calculated results to view the process behavior material.
- Heating Load: 3KW.
- Gas flow controller: Through gas regulator on cylinder & Rota Meters on Machine. Switching of gas instruments is required.
- Rate of Heating :20 oC/min. for test & 2 oC/min for calibration process (selectable through switch)
- Accessories: Aluminum pan 100 nos & Copper pan 100 nos , Indium for calibration test, Gas regulators specimen holder.
- Paint: Powder Coated.
- Power: 1 phase, 230 V AC, 50Hz.
Application:

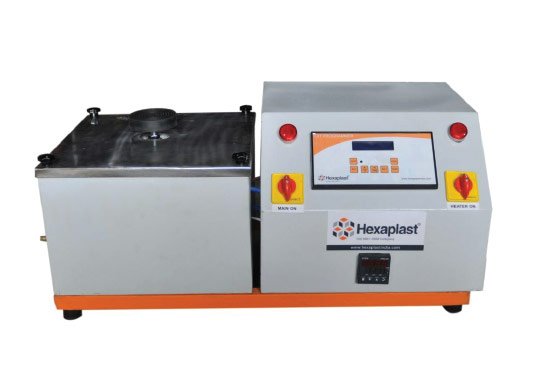

Hexa Plast offer Oxidation Induction Time Test apparatus based on Differential Thermal Analysis (DTA) principle. With PID Based Micro Controller With 0.1 oC least count. Delta Temperature Time Graph Display facility on your Computer monitor with oxidation induction time section parameters.
