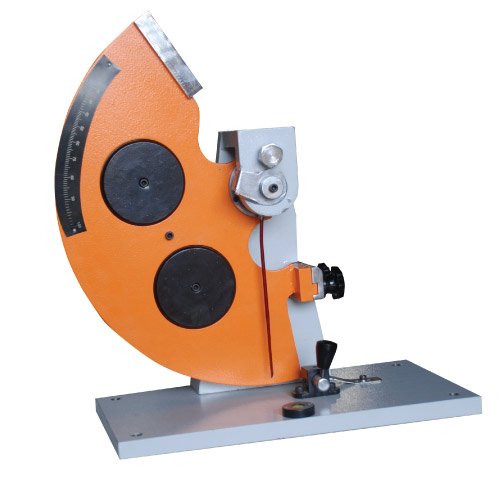

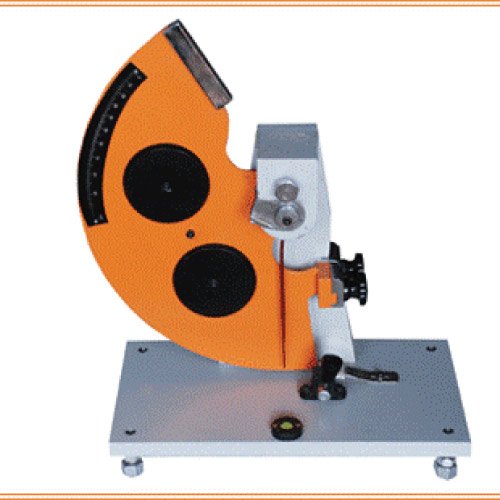

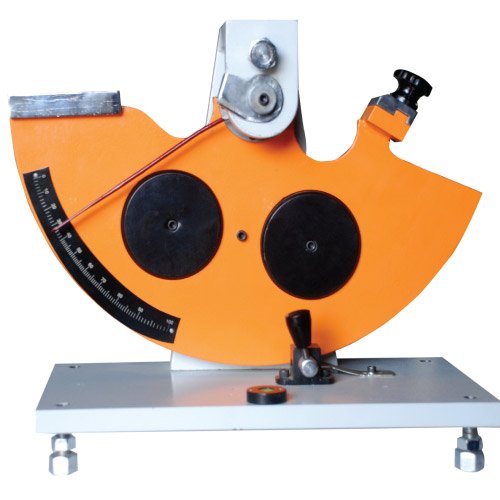

Tear Strength Tester Specification:
| Capacity | 1600 Gms (By Brass pendulum only |
| 3200 Gms (By adding Augmenting weights at the back) | |
| 6400 Gms (By adding Augmenting weights at the front) | |
| Clamping surface of each Clamp | 35.5 mm length x 15.5 mm width |
| Distance between clamps | 2.5±0.25mm |
| Tearing Distance | 43±1mm |
| Slit Size | 20 mm |
| Scale reading | 0 to 100% of range |
| Calibration check weight | At 1600 Gms |
| At 3200 Gms | |
| At 6400 Gms. | |
| Overall Dimensions of Unit | 470(W) x 300(D) x410(H) mm |
| Net wt of the Unit (With check Wt-1600, 3200&6400 Gms) | 29.5Kg. |
