Two Roll Mill

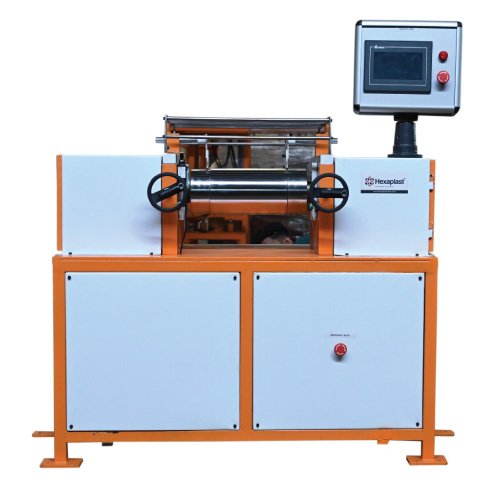

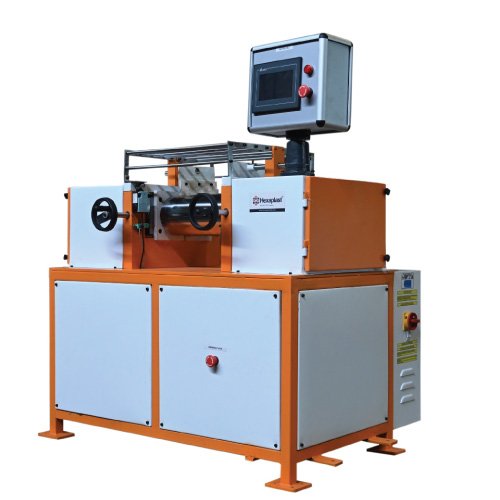

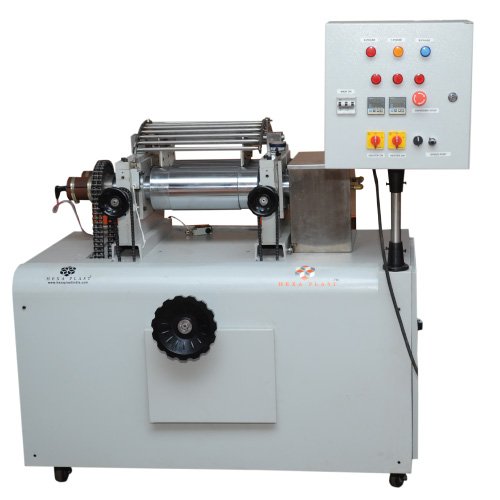

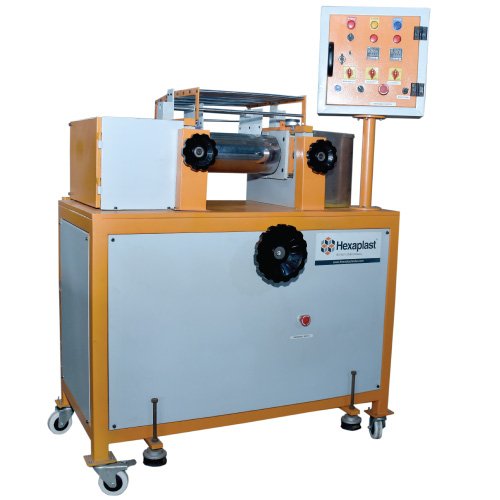

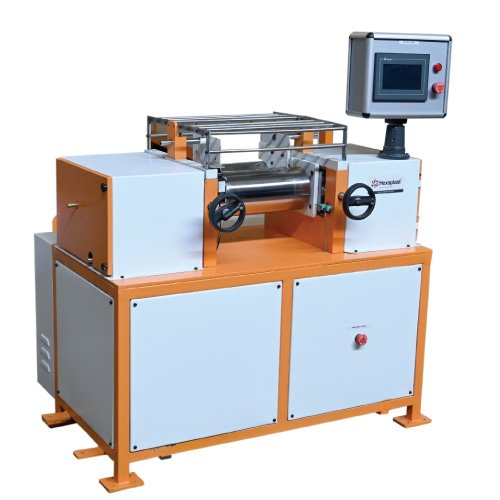

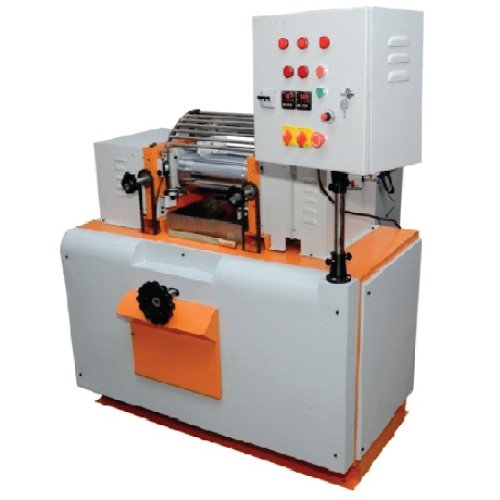

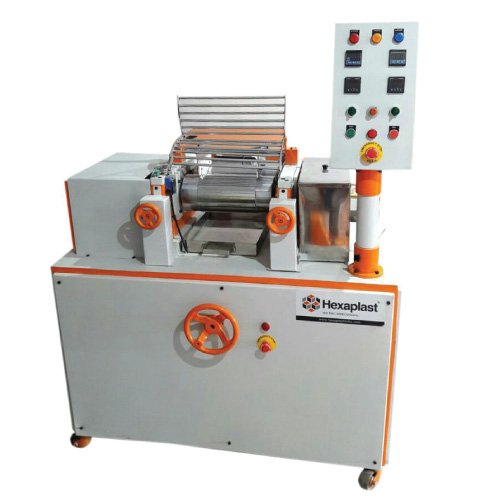

An image of Two Roll Mill by HexaPlast
Two Roll Mill
Two Roll Mill
Two Roll Mill
Two Roll Mill

Two Roll Mill

HEXA PLAST Two Roll Mill with fixed speed and friction is laid out for constant working conditions. The machine is available with roll diameters of 150 mm. (as per requirement).

The rolls are driven by a geared AC Motor. The rear roll is driven by spur gears for a constant friction. Modifications for speed and friction are possible to meet individual requirements within certain steps.

The rolls are aligned in rigid frames. The rear roll is in a fixed position for good access to the rolls. The front roll can be moved with a hand shaft. The central adjustment ensures parallel movement. The working width is laid out for both plastics and rubber processing.

The drive system is equipped with a knee-actuated switch for emergency stop. Opening to the necessary safety distance can be done by hand however without turning of the rear roll.

HEXA PLAST Two Roll Mill equipment is used to mix the plastics materials under sufficient amount of heat.

Category:

The rolls are made of corrosion resistant steel and surface hardened. A central lubrication system combined with high-temperature resistant seal ring sallow low maintenance operation. The electrical heating energy is provided by cartridges. Heat distribution is controlled in three different zones to equalize difference over the roll.

The machine is equipped with a contractor control system. Roll temperature will be controlled with digital controllers. With the operating units mounted in an adjustable panel the machine can be operated from both sides.

Electric and drive system are incorporated in the machine frame with easy access for maintenance. The machine will be delivered with integrated controls and needs supply connections only.

SPECIFICATION

Technical Data Model : HP – TRM-I
Roll Diameter 150 mm
Roll Width 350 mm
Heating Power/Roll 5 kW
Roll Speed Fixed 18 / 23 RPM
Driver Power 3.7 kW
Roll Temperature Upto 300º C
Power Supply 1 Phase, 230 V, AC, 50 Hz.

Application

A mill is typically assembled on a steel foundation plate, which is again set on rubber-pads or sound-metals adjustable, to isolate noise-levels to the building also to avoid tensions on the mill structure, precisely levelling out of the mill is very important for smooth operation.

Standard – IS 2530
