Product

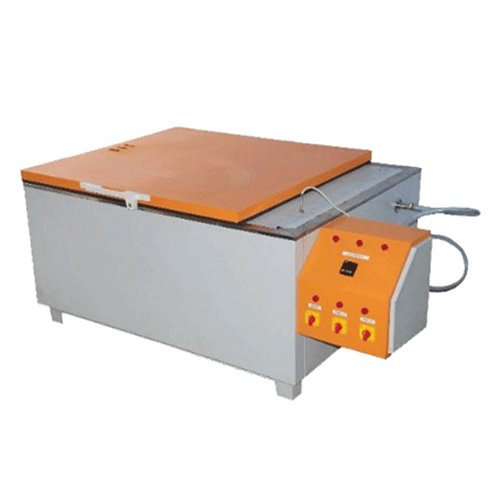

Hexa Plast ‘ s Bath are Different Designed to heat faster with low energy cost and maintain the temperature for longer time.
To Maintain the temperature in to the bath circulation is done by either one 0r two pumps Or Motor as depending on the volume of bath.
Temperature is controlled by Auto Tune PID Controller.
In Large Size of Bath Hexa Gives Separate bath for heating and hot water is circulated to the other chamber so as to save the energy cocost.
Hot Water Bath are Used for long & Short Term Hydrostatic Pressure test of pipes.
These bath are made as per International Standards to provide the Heating Media to The Product.
USP
“Hexa” baths are uniquely designed to heat faster with low energy cost and to maintain the temperature for longer time. To maintain the temperature into the bath circulation is done by either one or two pumps as depending on the volume of bath.
Temperature is controlled by microprocessor based controllers. In large size bath “Hexa” gives separate bath for heating & the hot water is circulated to the other chamber so as to save the energy cost.
Hot and Cold water Baths are used for long & short term Hydrostatic Pressure test of pipes. These bath are made as per international standards to provide the heating & cooling media to the product.
APPLICATION
As plastics are affected by the temperature, Hydrostatic Pressure tests for HDPE, R-PVC, C-PVC, U-PVC, MDPE and lateral pipes test specimens are suppose to be tested either at room temperature, at higher temperature or lower temperature in water bath as per national & international standards
| Size | 1220 X 760 X 460 mm. ( Inner Size) & As per Requirement. |
| Temp. Range. | Ambient To 100 o C. |
| Resolution. | 0.1 o C. |
| Accuracy . | +/- 0.5 % |
| Material Construction | Inner S.S. & Outer M.S. With Powder Coated Or Paint. |
| Power Supply | 415 V , 3 Phase , 50 HZ. |
Standard – ASTM D 1598
