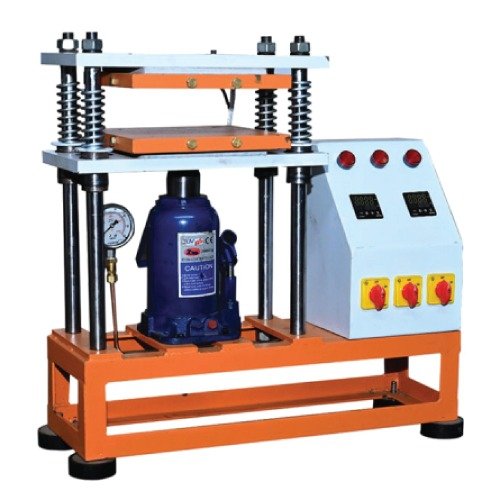

Plastic Lab molding press
HEXA PLAST Lab Molding Press is a precision-engineered thermal compression machine used to prepare test slabs,
sheets, and samples of thermoplastic and thermosetting materials. It applies controlled heat and pressure to mould
polymer materials into standardized shapes for mechanical, thermal, and chemical testing.
Its robust frame, accurate temperature control, and uniform pressure distribution make it essential for research
laboratories, quality control departments, and masterbatch development units.
- Preparing polymer sheets and slabs for mechanical testing.
- Producing test samples for tensile, tear, flexural, and impact tests.
- Moulding thermoplastic materials under controlled heat and pressure
- Pressing Capacity: 1–30 Tons (depends on model)
- Hydraulic Pump: Manual / Electric
- Platen Size: 150 × 150 mm to 300 × 300 mm
- Power Supply: 230V AC, 50Hz
- Temperature Range: Ambient to 300°C
- Standards: As per : ASTM D4703, ISO 293, IS 13360 .
- Temperature Control: Digital PID
- Heating Zones: 1–2 zones
- Pressure Display: Analog/Digital gauge
- Platen Material: Hardened steel / SS / Chrome plated MS
- Heavy-duty hydraulic press system.
- High-precision temperature sensors.
- Dual heating plates with uniform heat distribution.
- Safety lock and over-temperature protection.
- PID-based digital temperature controller.
- Rigid MS powder coated frame construction.
- Adjustable pressure control with gauge.
- Manual or automatic hydraulic pump operation.
- PLC-based touchscreen control system (optional).
- Auto-pressure holding system.
- Cooling plates for faster cycle completion.
- Programmable heating and cooling cycles (optional).
