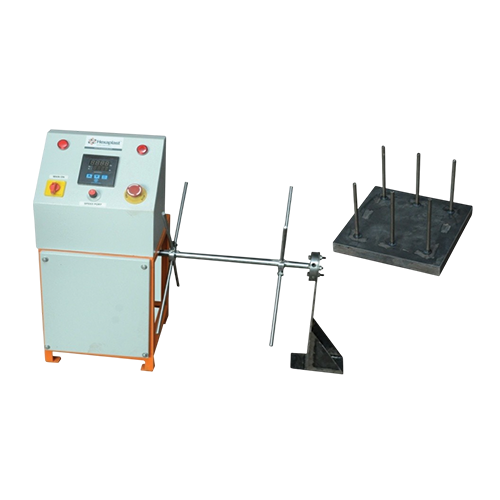

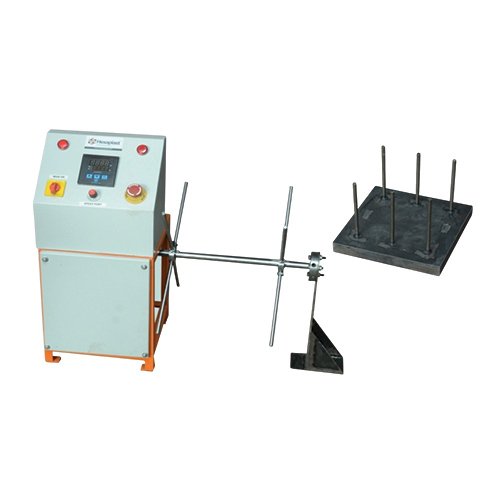

Auto Wrap Reel Machine
HEXA PLAST Wrap Reel is a precision mechanical instrument used to prepare standard yarn hanks for measuring the linear density (count) and strength characteristics of yarns. It winds yarn into hanks of a fixed length under controlled tension, ensuring accurate and repeatable results.
In the plastics and textile industry, the Wrap Reel is widely used for testing PP/HDPE tapes, multifilament yarns, monofilaments, and synthetic fibers. It is essential for QC labs, production units, and research centers that require consistent and standardized yarn measurement.
- Preparation of yarn hanks for count (denier/tex) determination.
- Winding PP/HDPE tapes and filament yarns for quality analysis.
- Strength and elongation sample preparation for tensile testing.
- Reel Circumference: 1 meter or 1.5 yards
- Tension Device Range: 0–500 gf
- Number of Turns: 80, 100, 120 turns (selectable)
- Power Supply: 230V AC, 50Hz
- Counter Type: Mechanical / Digital
- Standards: ASTM D1907, ASTM D2256, ISO 2060, IS
1963 - Reel Material: SS-304 / Aluminum alloy
- Drive Type: Manual / Motorized
- Speed: 30–60 RPM
- Frame Material: Powder-coated MS
- Standard circumference reel (1.5 yards / 1 meter).
- Smooth, vibration-free winding operation.
- Mechanical or digital revolution counter.
- Stainless steel or aluminum reel arms.
- Adjustable tension device for uniform winding.
- Foot pedal or hand lever operation.
- Rigid, balanced frame for stability.
- Anti-slip mechanism to prevent yarn breakage.
