Bending Machine

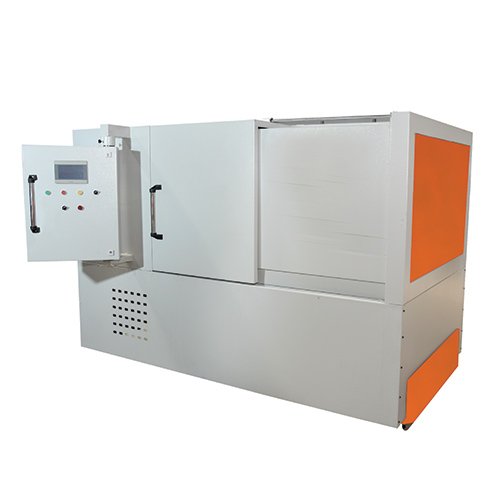

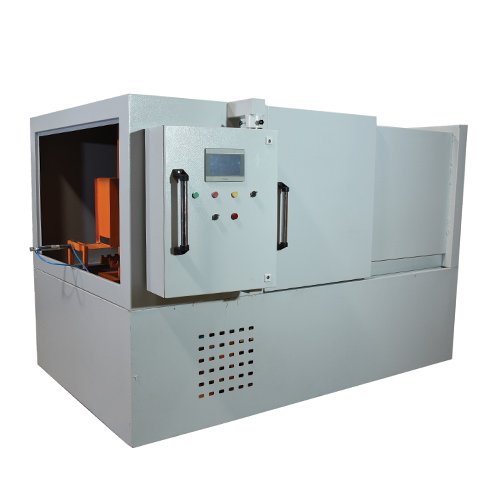

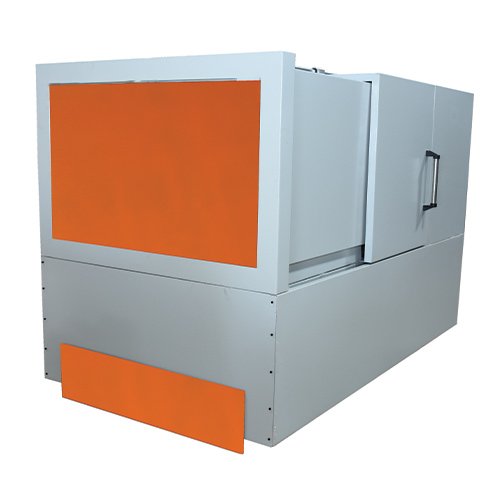

A PVC pipe bending machine is an electric or pneumatic, automated/semi-automated device designed for fast, precise, and high-volume shaping of PVC conduit pipes, typically producing 350-700+ bends per hour at 90-degree angles. Used in construction and electrical work, these machines often feature heating elements for sizes 16mm-50mm, with specialized models handling up to 160mm, ensuring uniform, kink-free bends.
• Electrical Conduit Work: Creating precise, uniform bends for electrical wiring installation.
• Construction/Plumbing: Bending pipes for plumbing systems and structural conduits.
• Pipe Processing: Specialized machines like those from Hexaplast Industries also handle pipe belling (making the pipe socket-friendly).
- Pneumatic based PVC pipe bending machine.
- Required power for machine: 1 HP Signal Phase
- Compressor: 7.5 HP (Your Scope Three Phase)
- Total power for machine: 8.5 HP 3 Phase
- Diameter: 19mm to 25mm (Inbuilt 1 die-set) ( Any One )
- Thickness for 19 & 20 mm: 1.2 mm
- Thickness for 25 mm: 1.5 mm
- Machine type: Fully automatic
- Bending: 90 Degree
- Socketing: both sides
- PLC based automatic controller With HMI.
• Types: Automatic or Semi-Automatic.
• Operating Method: Typically uses electric heating, with some featuring pneumatic controls for bending and, in some cases, socketing/belling.
• Bending Capacity: Ranges from small conduits (19mm–25mm) up to industrial sizes (50mm–160mm).
• Production Rate: High efficiency, often producing 600-700 bends per hour.
• Bending Angle: Up to 90 degrees.
• Material Compatibility: CPVC, PVC, uPVC, OPVC and plastic conduit pipes.
• Components: Often includes a robust frame, heating chamber, PLC controller with HMI, and sometimes a, cooling system.
