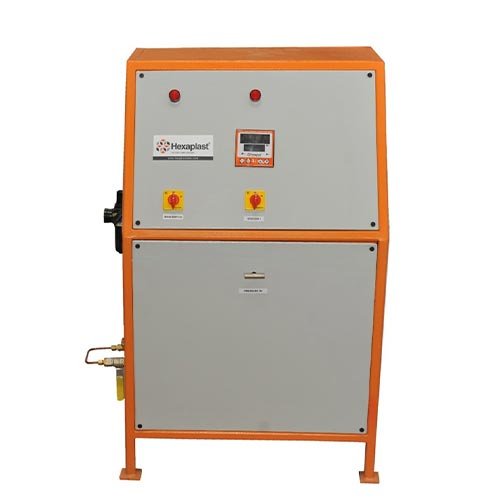

Burst Tester: For Pipe
HEXA PLAST Burst Tester is a precision testing instrument used to measure the bursting strength of materials such as Plastics Laminated Fabric, Rubber Laminated Fabric, Plastics Tarpaulin, Geo-textile Fabrics, paper, Multilayer Films, paperboard, corrugated boxes, leather, fabric, and packaging materials. It determines the maximum pressure the material can withstand before it ruptures.
This helps manufacturers ensure that the packaging or material can resist handling, stacking, and transportation pressure.
- Used for measuring the bursting strength of woven and coated plastics fabric, paper, paperboard, and corrugated fiberboard.
- Ideal for testing packaging materials, multilayer films used in shipping, transport, and storage.
- Suitable for textile, leather, and non-woven fabric bursting strength evaluation.
- Pressure Range: 0 – 40 kg/cm² (or as required).
- Test Area: Standard 30.5 mm diameter (customizable).
- Accuracy: ±1% of full scale.
- Power Supply: 230V AC, 50Hz.
- Display: Digital / Touchscreen (optional).
- Standards: As per ASTM D3786 / ISO 2758 / ISO 2759
IS 1060 Part-6, IS 7016 Part-6 Sec 2. - Test Fluid: Glycerin and water mixture.
- Diaphragm Material: High-grade rubber.
- Clamping Mechanism: Manual or pneumatic.
- Operating Temperature: 10°C – 50°C.
- Heavy-duty, ergonomic design for stable and accurate performance.
- Microprocessor-based control system for precise readings.
- Digital display for burst pressure indication.
- Automatic hydraulic pressure generation mechanism.
- Stainless steel test chamber and clamps.
- Overload protection system.
- Fast test cycle
- User-friendly operation with low maintenance.
